Rave Cage Carnage.
Rave Cage Carnage (RCC) is a Rhythm-based action slasher with
roguelike progression and dynamic intensity. For this game

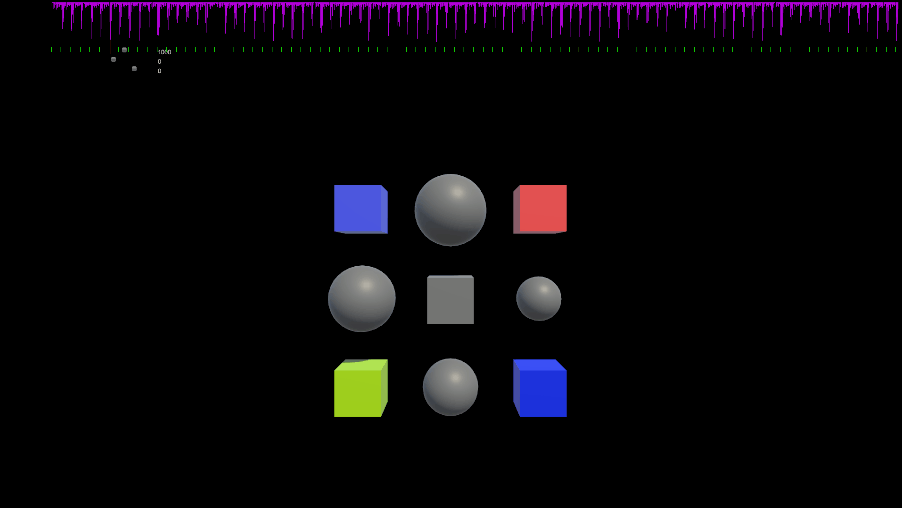

I developed a beat detection script which should allow us to
Player inputs and objects to respond to the music.
My tasks:
-Gameplay Programmierer: Enemy K.I., Skillsets implemented, Items implemented.
-System Programmer: Beat detection script created. A script that allows us different objects respond to the beat of the music and match player input to the beat.
Trailer: Rave Cage Carnage Trailer
My tasks:
-Gameplay Programmierer: Enemy K.I., Skillsets implemented, Items implemented.
-System Programmer: Beat detection script created. A script that allows us different objects respond to the beat of the music and match player input to the beat.
Trailer: Rave Cage Carnage Trailer
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class BeatAnalyse : Singleton(BeatAnalyse)
{
float[] spectrum;
public static List beatStarts = new List();
[SerializeField] float drawWidth;
[SerializeField] float limit, waitSamples;
[SerializeField] AudioClip wave;
void Start()
{
int amount = wave.samples;
spectrum = new float[amount];
wave.GetData(spectrum, 0);
for (int i = 0; i < spectrum.Length; i++)
{
spectrum[i] = Mathf.Abs(spectrum[i]);
}
for (int i = 1; i < spectrum.Length -1; i++)
{
if (spectrum[i] > limit)
{
if(spectrum[i] <= spectrum[i-1] && spectrum[i] >= spectrum[i+1])
{
beatStarts.Add(i);
i += (int)waitSamples;
}
}
}
}
private void OnDrawGizmos()
{
if(spectrum == null)
{
return;
}
if (PlayerController.show)
{
Vector3 displacement = Camera.main.ScreenToWorldPoint(new Vector3(100, 100, 5));
float heightMulti = 1;
float widthMulti = 0.000005f;
Gizmos.color = new Color(0.5f, 0, 0.5f, 1);
for (int i = 0; i < spectrum.Length; i += 100)
{
Gizmos.DrawLine(displacement + new Vector3(i * widthMulti, 0, 0),
displacement + new Vector3(i * widthMulti, heightMulti * spectrum[i], 0));
}
}
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using UnityEngine.Experimental.VFX;
public class BeatStrike : MonoBehaviour
{
private Slider juiceMeter;
private AudioSource wave;
[SerializeField] VisualEffect particleLeft;
[SerializeField] VisualEffect particleRight;
[SerializeField] int reactionTime;
[Header("Time in Samples (10.000 = 0,25sec)")]
[SerializeField] int windowTrigger;
float timeSample;
bool action = false;
bool punish = false;
public static bool beatAttack = false;
[Header("Juice Reward in int")]
[SerializeField] int dashReward;
[SerializeField] int attackReward;
[SerializeField] int danceReward;
[Header("Juice Punish in int")]
[SerializeField] int dashPunish;
[SerializeField] int attackPunish;
[SerializeField] int dancePunish;
[SerializeField] int idlePunish;
void Start()
{
wave = GameObject.FindWithTag("Beat").GetComponent();
juiceMeter = GameObject.FindWithTag("JuiceMeter").GetComponent();
particleLeft.Stop();
particleRight.Stop();
}
void Update()
{
if (Input.GetButtonDown("Dash"))
{
if(IsOnBeat())
{
juiceMeter.value += dashReward;
particleLeft.Play();
particleRight.Play();
action = true;
}else
{
juiceMeter.value -= dashPunish;
}
}
else if (Input.GetButtonDown("Attack"))
{
if(IsOnBeat())
{
juiceMeter.value += attackReward;
beatAttack = true;
action = true;
}
else
{
juiceMeter.value -= attackPunish;
}
}
else if(Input.GetButtonDown("Dance"))
{
if(IsOnBeat())
{
juiceMeter.value += danceReward;
action = true;
}
else
{
juiceMeter.value -= dancePunish;
}
}
Punishing();
}
private void Punishing()
{
if(!IsOnBeat() && !action && !punish)
{
juiceMeter.value -= idlePunish;
punish = true;
}else if(!IsOnBeat() && action && !punish)
{
punish = true;
action = false;
}else if(IsOnBeat())
{
punish = false;
}
if (PlayerController.dashTime <= 0)
{
particleLeft.Stop();
particleRight.Stop();
}
}
public bool IsOnBeat()
{
timeSample = wave.timeSamples - reactionTime;
for (int i = 0; i < BeatAnalyse.beatStarts.Count; i++)
{
if (timeSample >= (BeatAnalyse.beatStarts[i] - windowTrigger) &&
timeSample <= (BeatAnalyse.beatStarts[i] + windowTrigger))
{
return true;
}
}
return false;
}
private void OnDrawGizmos()
{
if(BeatAnalyse.beatStarts == null)
{
return;
}
if (PlayerController.show)
{
Vector3 displacement = Camera.main.ScreenToWorldPoint(new Vector3(100, 100, 5));
float heightMulti = 1;
float widthMulti = 0.000005f;
Gizmos.color = new Color(0.5f, 0, 0.5f, 1);
Gizmos.color = Color.green;
for (int i = 0; i < BeatAnalyse.beatStarts.Count; i++)
{
Gizmos.DrawLine(displacement + new Vector3((BeatAnalyse.beatStarts[i] - windowTrigger + reactionTime) * widthMulti, 0, 0),
displacement + new Vector3((BeatAnalyse.beatStarts[i] + windowTrigger + reactionTime) * widthMulti, 0, 0));
}
Gizmos.color = Color.red;
Gizmos.DrawLine(displacement + new Vector3(wave.timeSamples * widthMulti, 0, 0), displacement + new Vector3(wave.timeSamples * widthMulti, heightMulti, 0));
}
}
private void OnGUI()
{
if (PlayerController.show)
{
GUI.color = Color.magenta;
GUI.Label(new Rect(10, 10, 200, 30), "Beat: " + IsOnBeat());
}
if (BeatAnalyse.beatStarts == null)
{
return;
}
if (PlayerController.show)
{
Vector3 displacement = Camera.main.ScreenToWorldPoint(new Vector3(100, 100, 5));
float heightMulti = 1;
float widthMulti = 0.000005f;
Gizmos.color = new Color(0.5f, 0, 0.5f, 1);
Gizmos.color = Color.green;
for (int i = 0; i < BeatAnalyse.beatStarts.Count; i++)
{
Gizmos.DrawLine(displacement + new Vector3((BeatAnalyse.beatStarts[i] - windowTrigger + reactionTime) * widthMulti, 0, 0),
displacement + new Vector3((BeatAnalyse.beatStarts[i] + windowTrigger + reactionTime) * widthMulti, 0, 0));
}
Gizmos.color = Color.red;
Gizmos.DrawLine(displacement + new Vector3(wave.timeSamples * widthMulti, 0, 0), displacement + new Vector3(wave.timeSamples * widthMulti, heightMulti, 0));
}
}
}
